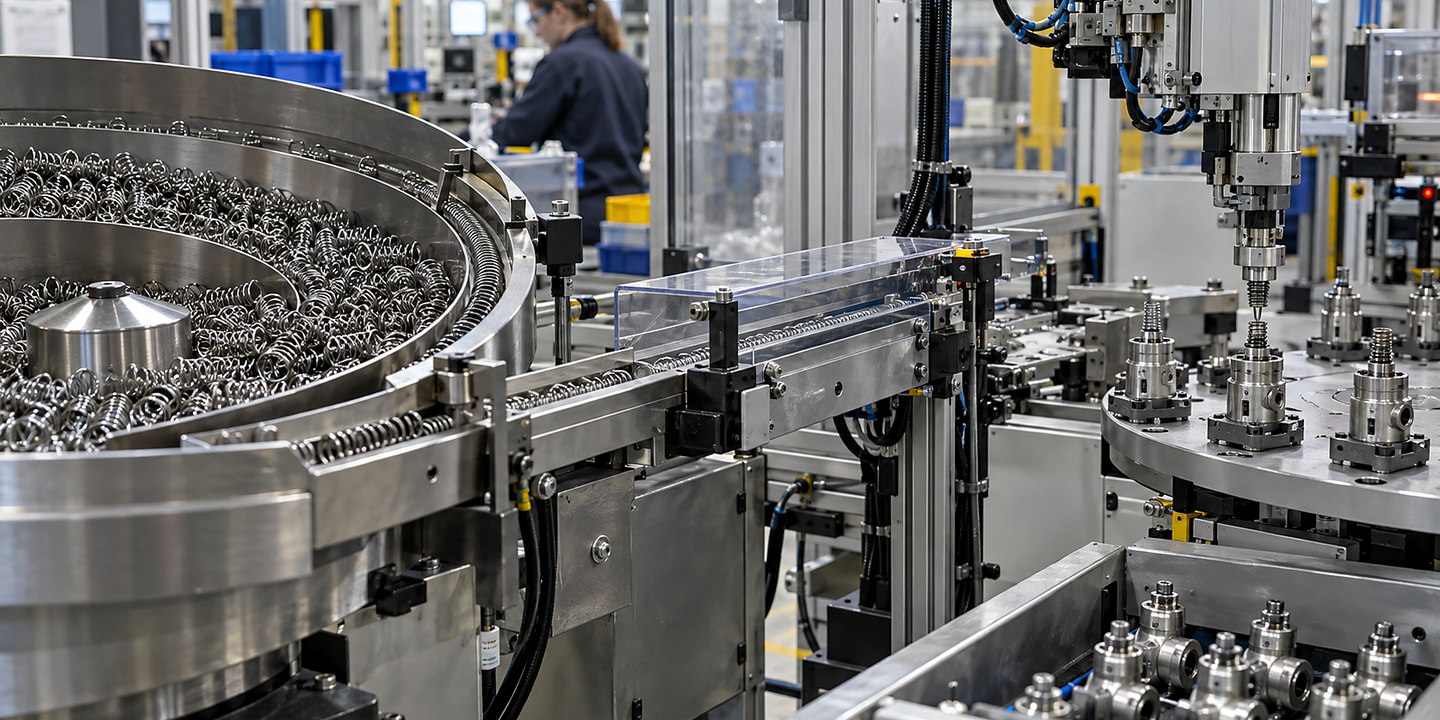

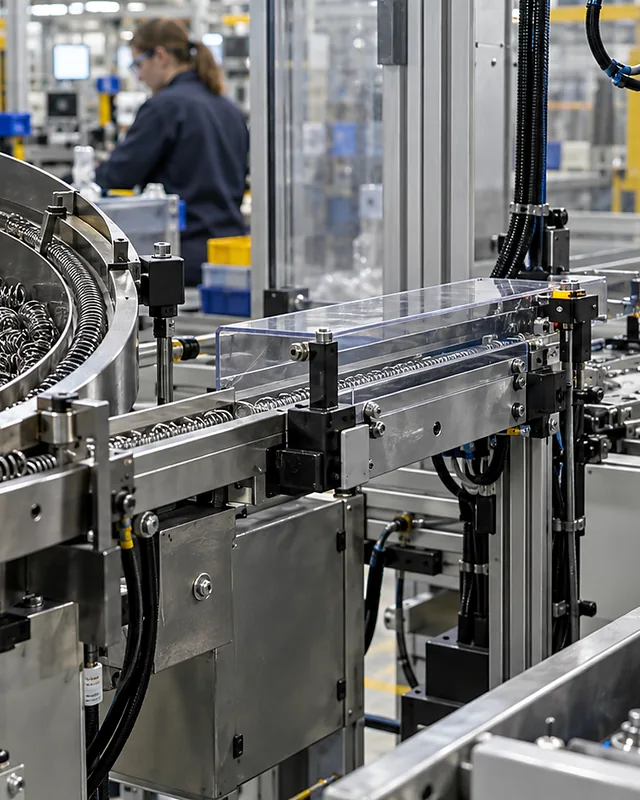

Bowl feeder containing metal springs beside a covered feed track and assembly equipment.
Component feeding and sortation

Plastic component feeders for moulded parts

Moulded plastic parts need feeding that accommodates the variation actually arriving from production. Establish the required orientation, acceptable appearance and downstream handover before comparing bulk feeding, controlled presentation or a flexible handling concept.

Speak directly with Sorting Solutions about moulded-plastic component feeding.

Quick answer

How should we feed moulded plastic parts with variable geometry?

Provide parts from representative moulding batches and cavities, including the dimensional and finish variation expected in production. Define the required orientation and any cosmetic limits. Trial separation, track transitions and the final release, checking similar-looking variants and how the feeder handles an ambiguous or damaged part.

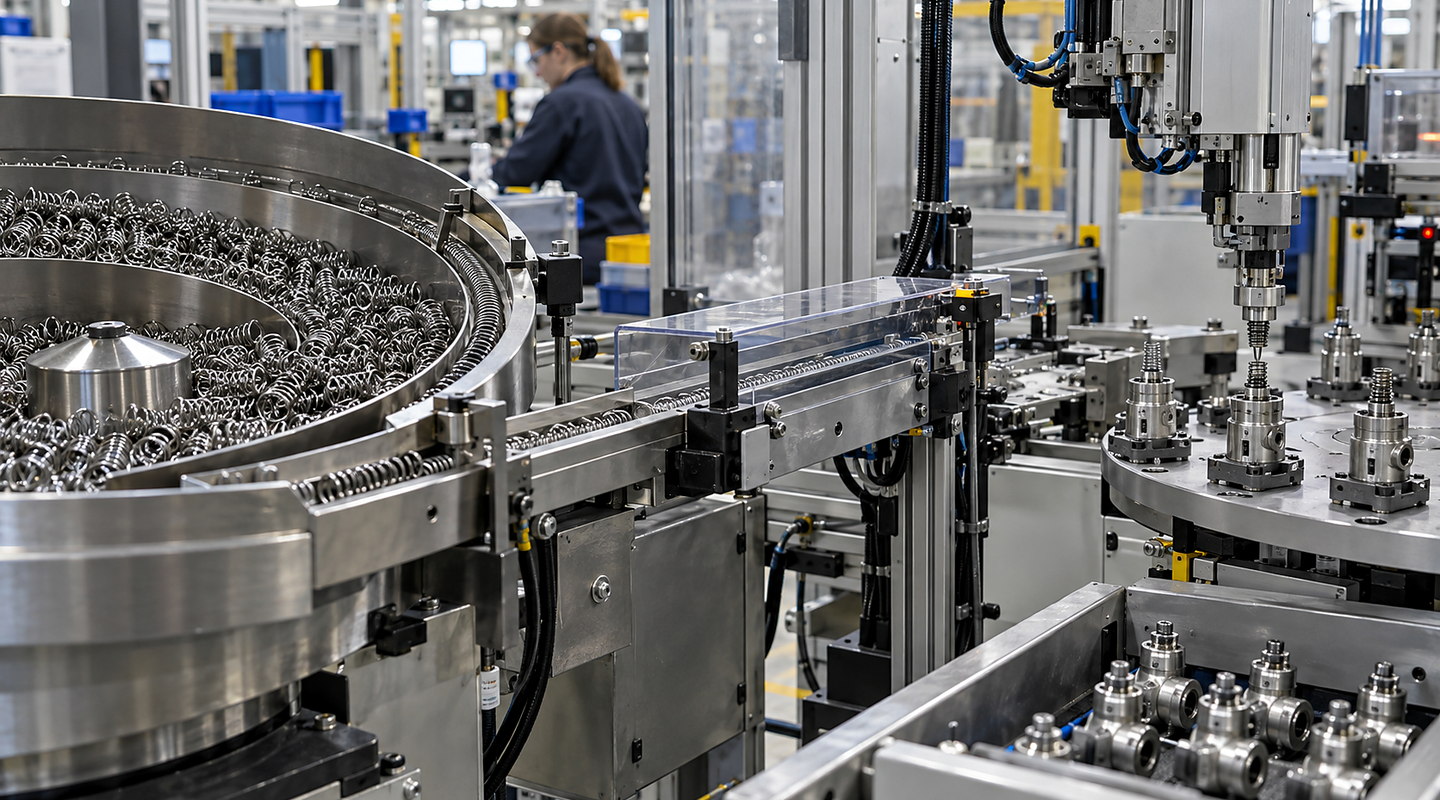

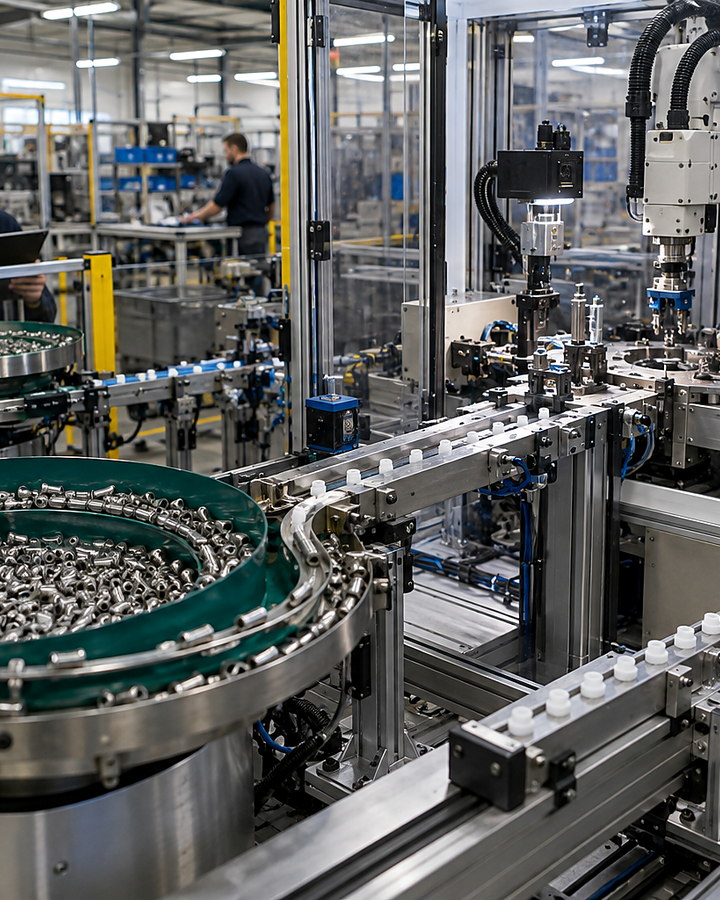

Bowl feeder containing metal springs beside a covered feed track and assembly equipment.

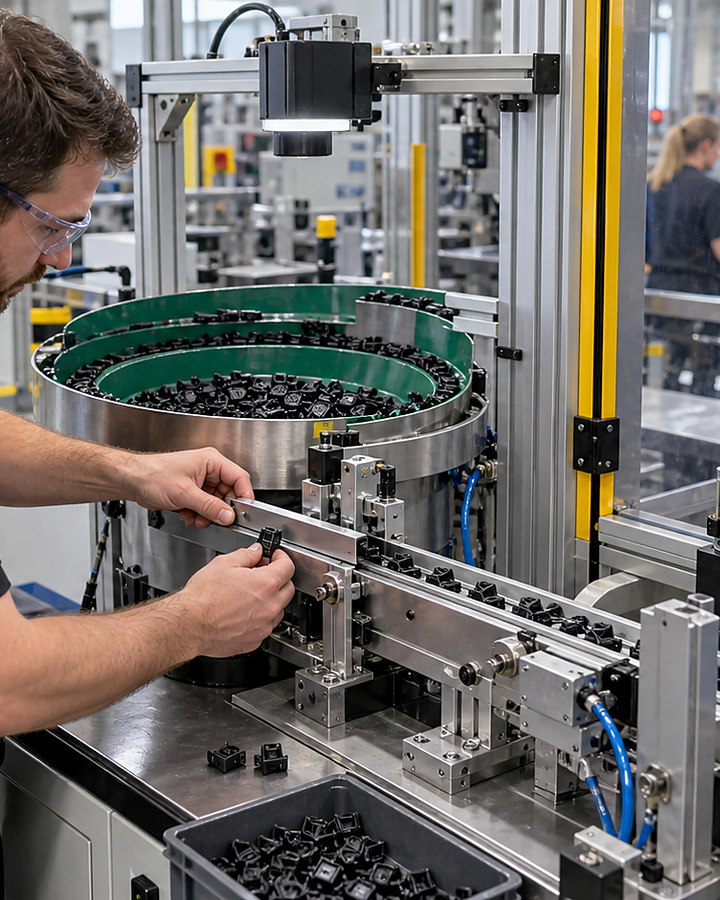

Person holding a small component beside a bowl feeder and feed track.
Selection criteria

Check the moulded part, not only its drawing

Use these decisions to define the proposed equipment and the checks needed for your application.

Decision 1

Represent cavities and batches

Supply parts from relevant mould cavities and normal production batches. Include dimensional, colour and finish variation within the accepted specification. A trial using one selected cavity may miss the part that catches, nests or presents differently.

Decision 2

Understand how parts interact

Show whether parts nest, overlap, hook together or cling during storage and movement. Compare the incoming bulk condition with the proposed loading method. Separation must be demonstrated before a dependable orientation rate can be established.

Decision 3

Identify cosmetic contact limits

Mark visible faces and surfaces that cannot be scratched or rubbed. Agree how condition is checked before and after the trial. Examine repeated recirculation and loading, not only the first pass of a clean component.

Decision 4

Prove the distinguishing feature

Identify the feature used to select the correct face or end. Include nearly symmetrical parts and any similar variants. Decide how uncertain orientation or the wrong variant is handled before it reaches the assembly fixture.

Decision 5

Specify the last movement

Provide the required position, support and available pick window at the receiving machine. Check whether waiting parts exert pressure on the released part. Useful output is the number delivered correctly at this handover, not the count leaving the main feeder.

Decision 6

Include replenishment and recovery

Observe performance with low and normal loading, replenishment and representative interruptions. Define a safe recovery method and how parts already in the system are controlled after a product change. Retain records of jams, damage and rejected orientations.

Applications

Two useful starting points for plastic component feeders

The right choice changes with component geometry and variation for moulded-plastic component feeding, surface, fragility and entanglement behaviour, your line layout and required results.

What happens next

Turn the application into a testable brief

Follow the sequence below to resolve the main specification questions before committing to equipment or installation.

  1. 01

    Choose representative mouldings

    Identify cavities, supplier batches and acceptable variation in the sample set before a feeding trial.

  2. 02

    Test separation first

    Observe bulk interactions and loading. Compare a controlled-presentation route where bulk handling cannot meet the part-condition requirement.

  3. 03

    Prove the assembly handover

    Use the required escapement or pick geometry and include downstream stops, queues and restarts.

  4. 04

    Agree usable delivery

    Record correctly orientated parts, cosmetic condition, rejected parts and intervention time against the configuration tested.

Important limits

Know what needs a separate check

Your final solution for moulded-plastic component feeding must reflect the law, current standards and site-specific risks that apply to your installation.

Build the feeder trial around moulding variation

For moulded parts, a single neat sample can hide the variation that will reach the feeder in production. Organise the trial so a successful result can be traced to the cavities, batches and surface conditions actually represented.

Keep cavity and batch identity

Where cavity information is available, retain it with the samples rather than mixing everything immediately. Compare the features used to support and orient the part, including gates, ribs, thin walls and mating faces. This helps distinguish a feeder limitation from a change in the incoming component.

Define permissible contact marks

Identify cosmetic surfaces separately from assembly and sealing features. Agree how marking will be assessed and compare the part before and after the complete route. A handling concept may deliver the correct pose while leaving a mark that matters on the finished product.

Investigate nesting before increasing feed intensity

Show how parts arrive from bags or bins, including typical interlocked or nested groups. Observe the step at which they separate and whether they reattach or overlap before release. A faster movement setting should not be assumed to resolve nesting without also checking damage and the final orientation.

Reproduce a real material change

Include the approved material, colour and finish variants that could affect presentation or detection. Record the tested configuration and any required change parts. If a new moulding revision alters the feature used by the track or sensor, review that change before relying on the original accepted feeder trial.
